Vintage Tube Amp

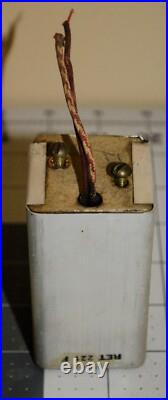

### Vintage Western Electric Tube Power Supply / Amplifier Chassis – Featuring TRANS D-163046. Up for sale is an incredibly rare, untouched vintage Western Electric power supply and amplifier chassis assembly from the late 1940s/1950s Cold War era. Originally engineered for the heavy-duty Bell System long-distance carrier networks, these industrial grey chassis are globally renowned today as the ultimate foundation for building custom luxury tube preamplifiers, phono stages, or mono-block guitar tube amps. This unit is a complete goldmine of original, high-grade Western Electric iron and components that are highly sought after by audiophiles worldwide. #### KEY HIGH-VALUE COMPONENTS INCLUDED. Main Power Transformer: Western Electric TRANS. D-163046 (Legendary nickel-iron Permalloy core with pure copper windings). Network Capacitors: 2x Western Electric GA-50920 Oil-Filled Filter Capacitors. Inductors: Original Western Electric RET (Retardation) Coils / Chokes. Chassis Markings: Beautifully stenciled industrial gray metal frame. #### PHYSICAL & COSMETIC CONDITION. The main chassis is in solid cosmetic shape with clean original factory paint and sharp stenciled labels. However, the capacitor itself remains completely bone-dry with NO oil leaks, and the original internal wiring harness and solder joints remain firmly attached to the terminal pins underneath. The other components, transformer blocks, and terminals are visually intact. Freshly recovered from a closed local estate storage cleanout. This is an incredibly heavy, dense block of industrial steel and copper. We take packaging seriously. This unit will be heavily wrapped in multiple layers of large-cell bubble wrap, packed securely inside a rigid inner box, and then DOUBLE-BOXED into a heavy-duty outer carton lined with thick foam insulation board. It will be bulletproof for transit.

StudeBaker M-199-3-J Vintage Tube Amplifier Cabinet w/ Palm Tree Grill Cloth.

This is a General Electric “Stereo Classic” Model RG-1000 Remote Control Unit, made in Auburn, NY in the early days of home stereo. It’s a passive accessory with ganged volume and balance potentiometers on a 30-foot cord, so you can adjust both from your chair. GE built it for its Stereo Classic tube amplifiers. Per the instructions, it also works with other amps that have a tape or preamp output, or with a pair of mono amps such as the GE PA-20. The unit has a textured aluminum faceplate with chrome trim, ebony knobs and base, and the GE Hi-Fi branding. The cord has its original L/R marker tags, and the yellow factory twist ties are still in place. Tested: Both potentiometers check out with a multimeter, showing smooth, continuous resistance sweep across volume and balance with no open spots. It has not been tested in a live audio system. Condition: Unit is clean, with bright chrome and good faceplate graphics Cord is supple, with no cracks or splits noted Original box shows edge wear, corner tears, and a detached end flap (included) Instruction sheet is complete, with fold wear and light toning, and a small paper loss on the illustration. Supremely Rare in this condition!

This sale is for a. Vintage Roland 1861 Tube Amplifier Powers on Untested. This amplifier has been power on only. No further testing has been done. Tubes glow and light lights. You will receive the exact item shown. Please make sure you look through the pictures.. We are not in on the weekends, so if a question is sent past 5:00 cst Friday we will not be able to reply until Monday. Monday-Friday 9:00 a. NO-DOA (Not Dead on Arrival). These items may be vintage, collectible, or specialty items that we do not have the technical capability to test or repair. Midwest Computer Brokers, Inc. Visit us at mcbia.

Vintage EICO HF-12 12-watt mono tube amplifier, previously modified from its original hi-fi configuration for apparent guitar/instrument amplifier use. This is an interesting restoration or further-conversion project for a tube guitar amplifier builder or vintage audio enthusiast. CURRENT CONFIGURATION – Original EICO HF-12 chassis, enclosure and transformers. Original four-position input selector removed and replaced with a front-mounted 1/4-inch input jack. Three remaining front controls: volume, bass and treble. Original rear audio inputs removed. Rear 1/4-inch speaker output jack added. Original speaker terminal strip remains, with altered connections. The 8-ohm terminal is presently unwired. Original decorative front faceplate is missing. Replacement Mallory electrolytic capacitors installed. Three-prong grounded-style power cord installed, but protective grounding has not been verified as satisfactory. Other previous wiring and component changes are visible. ELECTRICAL TESTING PERFORMED The amplifier has NOT been powered up or audio-tested. Resistance and continuity measurements were performed with a multimeter. Output transformer: – Primary end-to-end: approximately 341 ohms – Primary halves: approximately 187 and 154 ohms – Secondary G-4? : approximately 0.9 ohms – Secondary G-16? : approximately 1.3 ohms Power transformer: – Primary: approximately 40 ohms – Heater winding: approximately 0.4 ohms – High-voltage secondary: approximately 205 ohms total – High-voltage secondary halves: approximately 105 and 98 ohms No open windings were identified in the circuits measured. These are resistance/continuity measurements only and do not establish transformer performance under operating conditions. IMPORTANT ELECTRICAL CONDITION The three-prong power cord was checked for continuity between its grounding pin and the metal chassis. Meter lead resistance: approximately 0.2 ohms – Grounding pin to chassis: approximately 2.5-2.7 ohms The protective chassis-ground connection requires further inspection and verification. The power wiring, capacitors, previous modifications and overall electrical safety have not been fully evaluated. DO NOT CONNECT TO AC POWER UNTIL PROPERLY INSPECTED AND SERVICED BY A QUALIFIED TUBE-AMPLIFIER TECHNICIAN. RESTORATION POTENTIAL The EICO HF-12 originally used a push-pull EL84/6BQ5 output stage rated at 12 watts in its factory configuration. The existing instrument-style conversion offers an interesting starting point for a vintage guitar amplifier project. Actual instrument input characteristics, operating condition, output power and sound have not been verified. The amplifier could also be considered for restoration toward its original hi-fi configuration. This would require sourcing missing controls, connectors and faceplate components, tracing the wiring and making appropriate circuit repairs. Not represented as a working or electrically safe amplifier. Includes the amplifier and installed components as photographed. No additional accessories are represented as included. Please review the detailed photographs of the chassis, underside wiring, transformers, controls and connections.

Western Electric KS-15750-L1 Tube Tester manufactured by Hickok and designed for professional mutual conductance (Gm) tube testing. This highly sought-after tester was originally built for Western Electric/Bell System service applications and is widely respected among vintage audio collectors, tube enthusiasts, and electronics restorers. May require restoration, calibration, or replacement parts. Please review all photos carefully to determine completeness and cosmetic condition. Only the items shown are included. A rare opportunity to own one of the finest vintage tube testers ever produced. Western Electric, KS-15750-L1, Hickok, Hickok 1575, RD1575, tube tester, vacuum tube tester, mutual conductance, Gm tester, Bell System, Western Electric tester, vintage electronics, audio restoration, tube amplifier, audiophile, vacuum tubes, antique radio, electronics test equipment, collectible, parts repair, restoration project.

Please check the item specifics as it may contain details which you are looking for. We offer a handpicked collection of high-quality items, available exclusively in the U. Check item specifics and photos to ensure you make the perfect choice. While we strive to offer detailed images, it’s not always possible to verify every aspect of the item. Therefore, we apologize if the product does not meet your expectations.

FOR REFERENCE – SEE THE PICTURES. FOR PARTS OR NOT WORKING. IN GOOD VINTAGE CONDITION WITH SCRATCHES, SPOTS, RUST, DISCOLORATIONS AND SIGNS OF USE. WITH ATTACHED POWER CORD. PLEASE, SEE OUR OTHER ITEMS! GOOD LUCK AND THANK YOU FOR LOOKING!
